材質：不銹鋼、雙相鋼、碳鋼、鈦、鎳等
設計制造標準 Design ＆Manufacture Standard
|
設計制造按：GB/T 12234、BS 1873 結構長度按：GB/T 12221、ASME B16.10 法蘭連接尺寸按：JB/T 79、HG/T 20592、ASME B16.5 檢驗和測試按：GB/T 79、API 598 |
Design ＆Manufacture as per:GB/T 12234、BS 1873 Face to face dimension as per:GB/T 12221、ASME B16.10 Connection ends dimension as per:JB/T 79、HG/T 20592、ASME B16.5 Inspection and test as per:GB/T 79、API 598 |
性能規范 Specifications
|
公稱壓力：1.6,2.5,4.0,6.3Mpa 強度試驗：2.4,3.8,6.0,9.5Mpa 密封試驗：1.8,2.8,4.4,7.0Mpa 氣密封試驗：0.6Mpa 閥門主體材料：WCB(C)，CF8(P)，CF3(PL)， CF8M(R)，CF3M(RL) 適用介質：石油、天然氣、水、腐蝕蝕性介質 適用溫度：-29℃~425℃ |
Nominal pressure: 1.6,2.5,4.0,6.3Mpa Strength test: 2.4,3.8,6.0,9.5Mpa Seal test:1.8,2.8,4.4,7.0Mpa Gas seal test: 0.6Mpa Valve body matenial:WCB(C),CF8(P),CF3(PL), CF8M(R),CF3M(RL) Suitable medium: water, steam, oil products,nitric acid, acetic acid Suitable temperature: -29℃~425℃ |

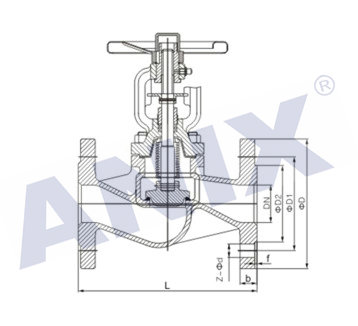

產品結構圖
