螺紋、焊接、快裝閥門:不銹鋼、雙相鋼、碳鋼、鈦、鎳等材質 埃尼斯集團生產的美標鍛鋼止回閥導向筋上堆焊硬質合金閥體上腔導向套采用不銹鋼材料制成保證閥瓣動作靈活；閥瓣與閥座密封面采用鈷基硬質合金等離子噴焊而成硬度高、抗沖蝕、經久耐用；先進的壓力密封設計和高純石墨墊片環以確保高氣密；閥門中腔采用壓力自緊式密封結構，內腔壓力越高密封性能越好；閥瓣圍繞閥座外的銷軸旋轉，減少關閉時發生的猛烈沖擊。
設計制造標準 Design ＆Manufacture Standard
|
設計制造按API 602、ASME B16.34 |
Design manufacture as per: API 602、ASME B16.34 Connection ends dimension as per: ASME B1.20.1、ASME B16.25 Inspection and test as per: API 598 |
性能規范 Specifications
|
公稱壓力：150~800LB 強度試驗：15XPN MPa 密度試驗：1.1XPN MPa 氣密封試驗：0.6MPa 閥門主體材料：A105(C),F304(P),F304(PL),F316(R),F316L(RL) 適用介質： 水、蒸汽、油品、硝酸類，醋酸類 適用溫度：-29°C~425°C |
Nominal pressure:150~800LB Strength test:15XPN MPa Seal tese:1.1XPN MPaGas seal test:0.6MPa Valve body material:A105(C),F304(P),F304(PL),F316(R),F316L(RL) Suitable medium:water,steam,oil,products,nitric Suitable temperature:-29°C~425°C
|

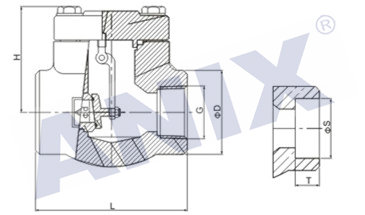

產品結構圖
題-1-155739.jpg)
題-1-155842.jpg)
題-1-100503.jpg)
題-1-162052.jpg)
題-1-162200.jpg)
